ZKONG Electronic Shelf Label
Electronic shelf label is an electronic display device mainly placed on the shelf-edge for the replacement of the traditional paper price labels that have been used by many stores currently. Each electronic shelf label is connected to the database of the merchant's computer through wireless network and displays the latest price information of the items accurately in real time.
It empowers new retail, realizing the ability to synchronize information between physical and online stores, improves the management efficiency and cost reduction control of stores.

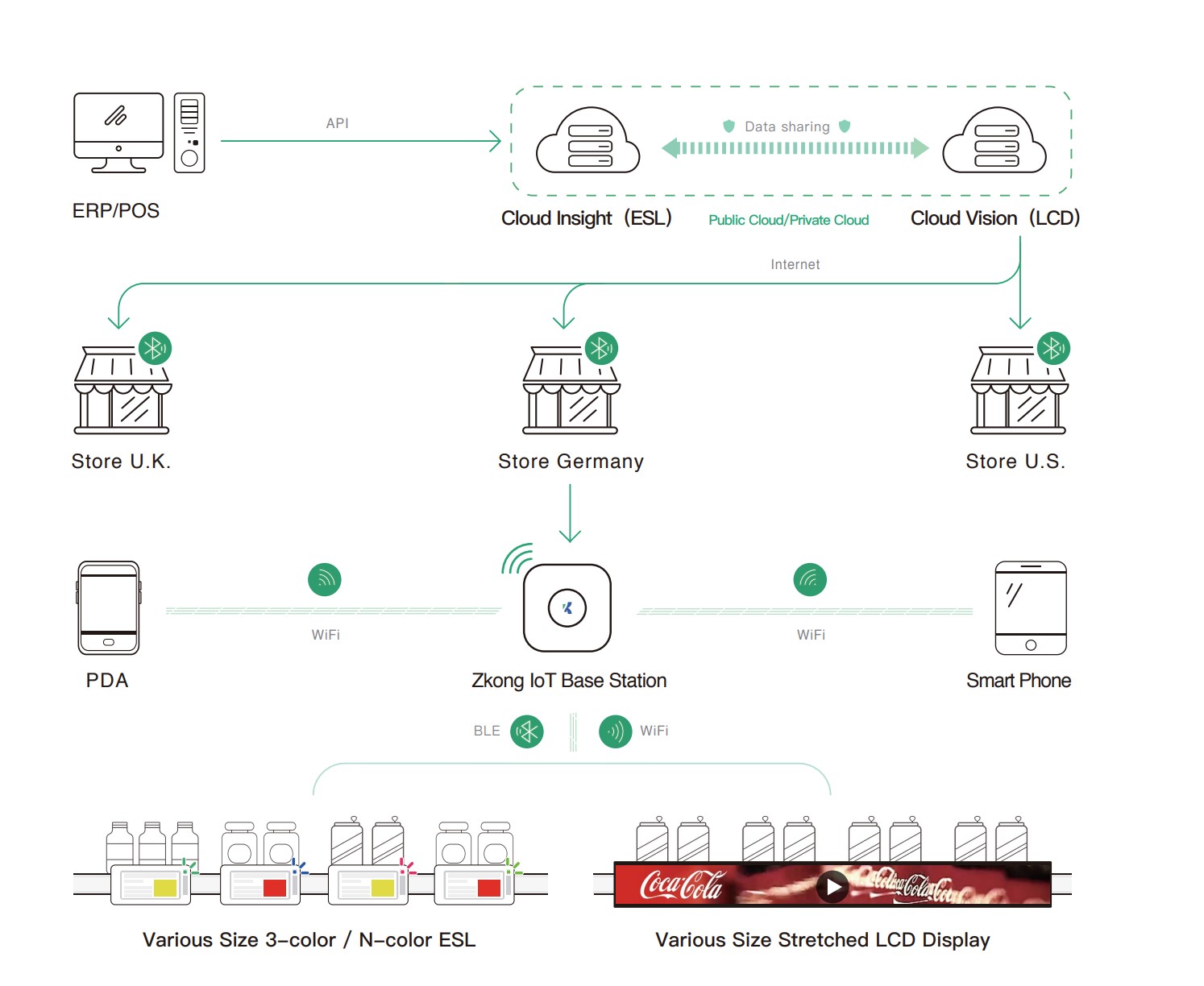

How It Works?
The combination of software and hardware makes in-store management more efficient and intelligent, unleashing the potential of smart retail. Cloud-based architecture to create an integrated smart retail infrastructure with electronic shelf labels, digital signage, AI cameras and other products.
Types & Specifications
ZK21SF
- Dimension: 7cm x 3.6cm x 1.43cm
- Screen: 4.86cm x 2.37cm
- Operating Temperature: -25°C~25°C
- Battery: 1000mAh
- It supports NFC technology and has LED light, as well as its battery is removable.
ZKC21V-N
- Dimension: 7cm x 3.45cm x 1.21cm
- Screen: 4.855cm x 2.37cm
- Operating Temperature: 0°C~40°C
- Battery: 1200mAh
- It supports NFC technology and has LED light, as well as its battery is removable.
ZKC29V-N
- Dimension: 9cm x 4.1cm x 1.21cm
- Screen: 6.69cm x 2.91cm
- Operating Temperature: 0°C~40°C
- Battery: 1200mAh
- It supports NFC technology and has LED light, as well as its battery is removable.
ZKC42V-N
- Dimension: 10.48cm x 8.48cm x 1.28cm
- Screen: 8.48cm x 6.36cm
- Operating Temperature: 0°C~40°C
- Battery: 1200mAh
- It supports NFC technology and has LED light, as well as its battery is removable.
ZKC58V-N
- Dimension: 13.54cm x 11cm x 0.9cm
- Screen: 11.88cm x 8.82cm
- Operating Temperature: 0°C~40°C
- Battery: 2400mAh
- It supports NFC technology and has LED light.
ZKC116V-N
- Dimension: 26.63cm x 19cm x 0.9cm
- Screen: 24.4cm x 16.4cm
- Operating Temperature: 0°C~40°C
- Battery: 3600mAh
- It supports NFC technology and its battery is removable.
ZKE58V-N
- Dimension: 13.54cm x 11cm x 0.9cm
- Screen: 11.49cm x 8.58cm
- Operating Temperature: 0°C~40°C
- Battery: 2400mAh
- It supports and displays multiple colour.

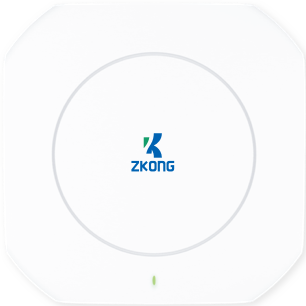

Wireless Bass Station Type
Size : 21.5 cm x 21.5 cm x 3.9 cm
Operating Temperature : -10°C~60°C
Power : 48V POE
Weight : 500g
Frequency : 2.4 GHz + 5 GHz
Wi-Fi Speed : 1167 Mpbs
Coverage : Indoor, 30 metres radius
ZAP-C Pro
Why You Need to Choose ZKONG ESL
Reasons
- Time Consuming
- Complicated manual replacement is time-consuming and error-prone.
- Price Difference
- Numerous shops or information are not synchronised between online and offline.
- Poor Experience
- Price difference in manual work leads to customer complaints.
- High Costs
- Munual replacement of paper labels is inefficient and high overall cost.
Advantages
Top-class Wireless Technology
Open range yp to 25-30m (radius). Wi-Fi dual-band, supporting 2.4Ghz and 5Ghz. Wiring-free installation and deployment. Intelligent algorithmic roaming and equlisation.
Fine Management at SKU Level
Individual positioning technology. Intelligent picking and shopping navigation in conjuction with shop layout maps. In-depth integration with AI cameras to enable full-field inventory. Combined with smart shelves for big data collection and consumer preference analysis.
Comes with A Template Editor
Cloud-based templates, browser operation. Visual and free editing, real-time preview. Huge template library, unlimited fonts, multi-language text. Flexible triggering.
SaaS System, No Local Installation Required
Support unlimited accounts on the same server. Computing capacity can be infinitely superimposed through server expansion. Reduce the cost of software and hardware due to the increasement of local server.
The Most Comprehensive Coverage of Scenarios
IP67 rated dust and water resistant, impact and drop resistant.-25°C~40°C working environment, designed for low temperature fresh environment. 7.5mm slim and light. Customisable appearance to meet the individual needs of brands.
3rd Generation Private BLE Communication Technology
Industry-leading transmission speed, with second-level refreshes. Exceptional interference immunity for complex deployment environments. Low power comsumption service life more than or equal to 10 years. Extremely secure and unbreakable, data security guaranteed.
Unlimited Expansion
Integrated a variety of intelligent devices such as EPD, LCD and AI cameras with one system. Billions of information processing. A single system supports millions of electronic shelf labels.
Flexible Deployment
Flexible options for SaaS public, private and local deployments. Support globally distributed deployment and cluster deployment.
Interface Opened
200+ API interfaces are available. Support different types of ERP, API and customized development with specific needs.
Extensivesness
Support Windows / Max OS / Android / iOS and many other operating systems. Built on a wide area network with global reach.
Data Security
Data storage records and professional AES 128-bit encryption in the cloud. Automatic detection and early warning mechanism.
Secondary Development
Secondary development gives new features to software and hardware. Private server build. Application or mini application development.
Rich Interaction Interface
Support more than 256 flashing light methods, corresponding to different function. NFC near field communication technology for online and offline integration. Bluetooth mobile phone direct connection, ESLs can be maintained offline. Customisable buttons for unlimited functional expansion.
